Trunk Lid Open Switch

  1. Disconnect the negative(-) battery terminal.
  2. Remove the trunk door trim.

    (Refer to TRUNK TRIM .

  3. Disconnect the trunk lid open switch connector (A).

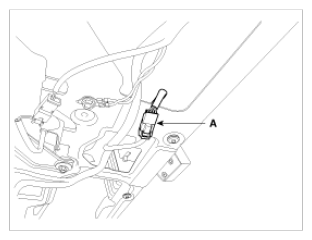

    Fig 1: Identifying Trunk Lid Open Switch Connector
    G08322905Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the trunk open switch (A) from the trunk garnish.
    Fig 2: Identifying Trunk Open Switch
    G08322906Courtesy of KIA MOTORS AMERICA, INC.
