Description And Operation: Description

line pressure control solenoid valve is attached to the valve body. This variable force solenoid valve directly controls the hydraulic pressure inside the line pressure.

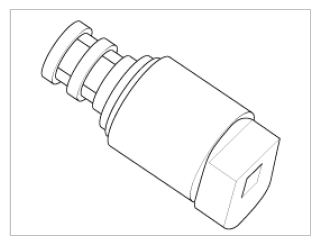

Fig 1: Identifying Line Pressure Control Solenoid Valve
G08321768Courtesy of KIA MOTORS AMERICA, INC.
