Description And Operation: Description

Inhibitor Switch monitors the lever's position(PRND) and is used to control gear setting signals.

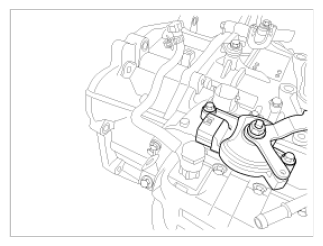

Fig 1: Identifying Inhibitor Switch Monitors Lever's Position (PRND)
G08321792Courtesy of KIA MOTORS AMERICA, INC.
