Steering Column Lower Shroud Assembly Replacement

CAUTION:
  • A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Take care not to bend or scratch the trim and panels.
  • Put on gloves to protect your hands.
  1. After loosening the mounting screws, then remove the steering column lower shroud assembly (A).

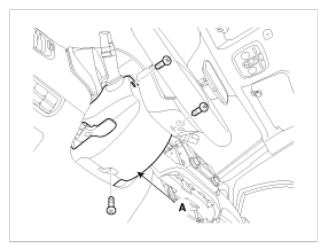

    Fig 1: Identifying Steering Column Lower Shroud Assembly And Mounting Screws
    G08322564Courtesy of KIA MOTORS AMERICA, INC.
  2. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.
