Repair procedures: Removal

NOTE:

Take care not to scratch the center fascia panel and related parts.
Eject all the disc before removing the audio unit to prevent damaging the CD player's load mechanism.

Disconnect the negative (-) battery terminal.

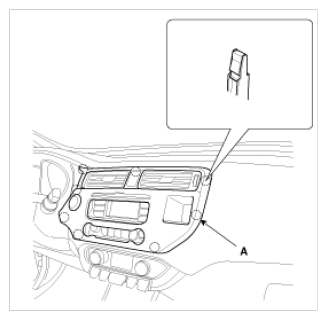

Using a screwdriver or trim remover, remove the center fascia panel (A).

Fig 1: Removing Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

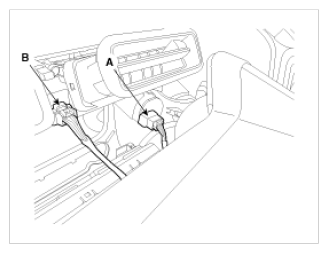

Disconnect the start/stop button connector (A) and hazard switch connector (B).

Fig 2: Identifying Start/Stop Button Connector And Hazard Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

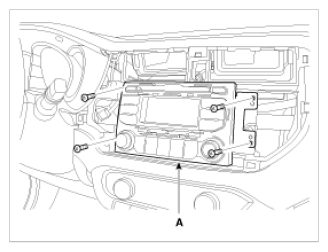

After loosening the mounting screws, then remove the audio assembly (A).

Fig 3: Identifying Audio Assembly With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

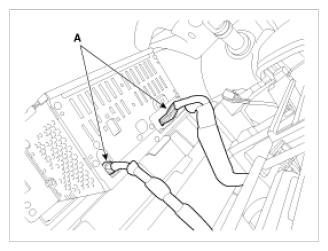

Disconnect the audio connector and cable (A).
