Smart Junction Box Connector End View (I/P-B)

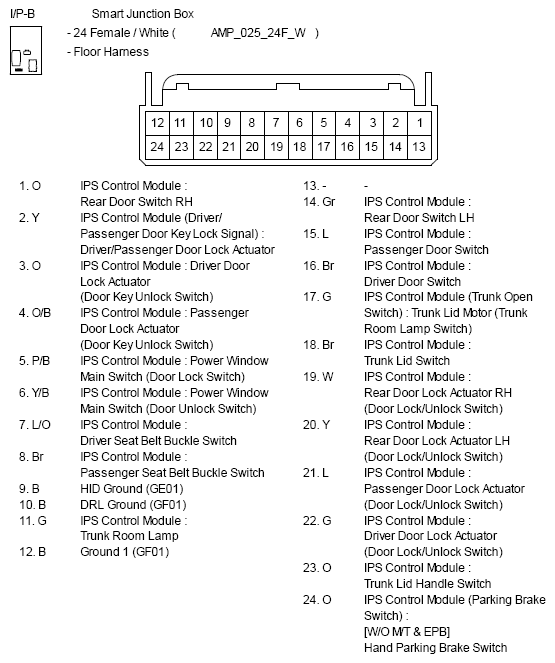

Fig 1: Smart Junction Box Connector End View (I/P-B)

G10810237

Courtesy of KIA MOTORS AMERICA, INC.
