Home >> Kia >> 2015 >> Optima LX >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 3) - 2.4L (Except HEV) >> DTC P0092: Fuel Pressure Regulator 1 Control Circuit High >> Specification >> Signal Waveform & Data

Signal Waveform & Data

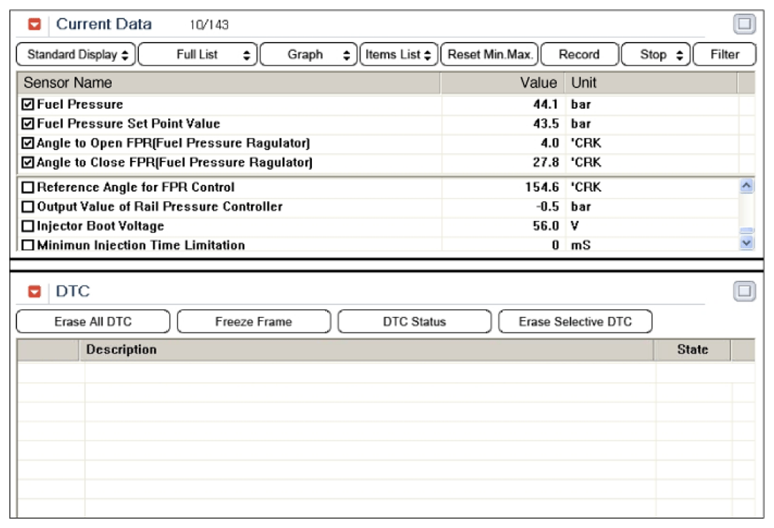

Fig 1: Scantool Data Of Fuel Pressure Regulator (Normal At Idle)
G07386199Courtesy of KIA MOTORS AMERICA, INC.

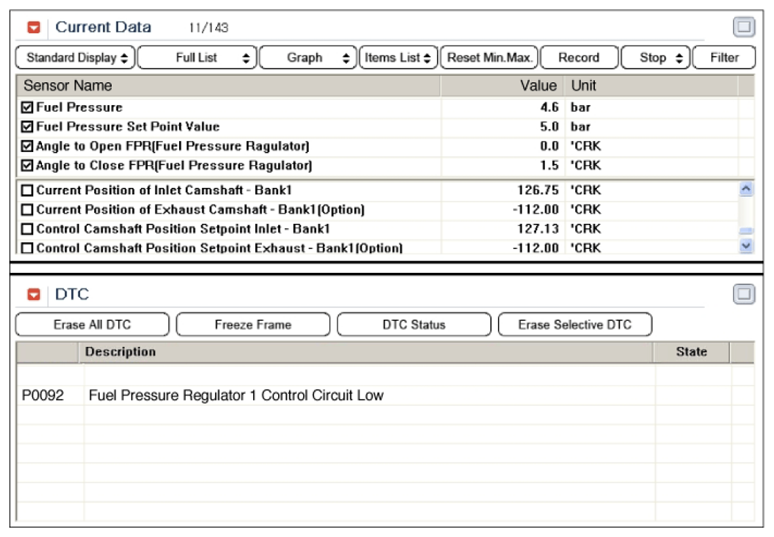

Fig 2: Scantool Data Of Fuel Pressure Regulator (Short To Power)
G07386200Courtesy of KIA MOTORS AMERICA, INC.
