Signal Waveform & Data

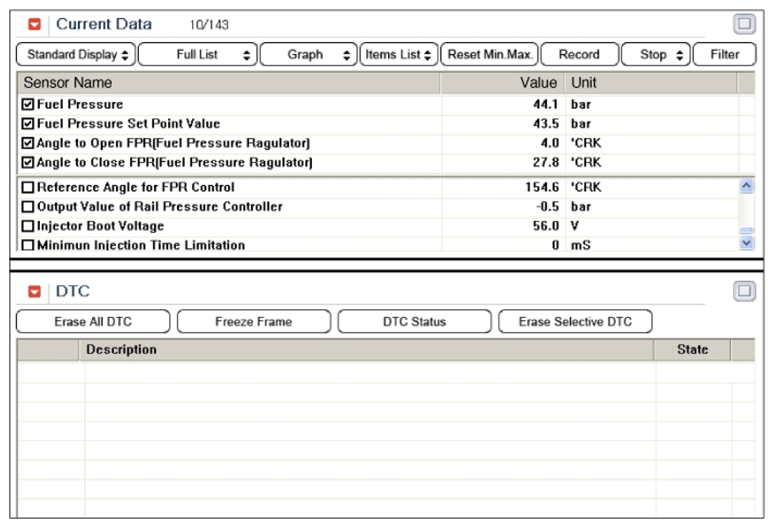

Fig 1: Scantool Data Of Fuel Pressure Regulator (Normal At Idle)
G07386191Courtesy of KIA MOTORS AMERICA, INC.

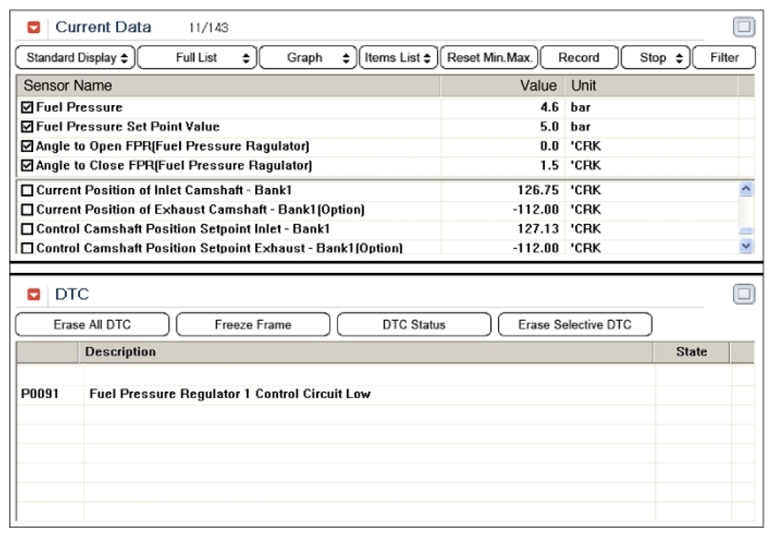

Fig 2: Scantool Data Of Fuel Pressure Regulator (Short To Ground)
G07386192Courtesy of KIA MOTORS AMERICA, INC.
