Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Data Link Connector Location
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

Fig 2: Scantool Display - Select System
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be displayed as below.

Fig 4: Scantool Display - Insert Key To Teach
Courtesy of KIA MOTORS AMERICA, INC.
After inserting the teaching key, push "ENTER" key.
Input the "Pin Code" for first key teaching.

Fig 5: Scantool Display - Smart Key Code Saving Pin Code
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Scantool Display - Smart Key Code Saving (Are You Sure)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First Key Teaching Completed".

Fig 7: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
Input the "Pin Code" for second key teaching.

Fig 8: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

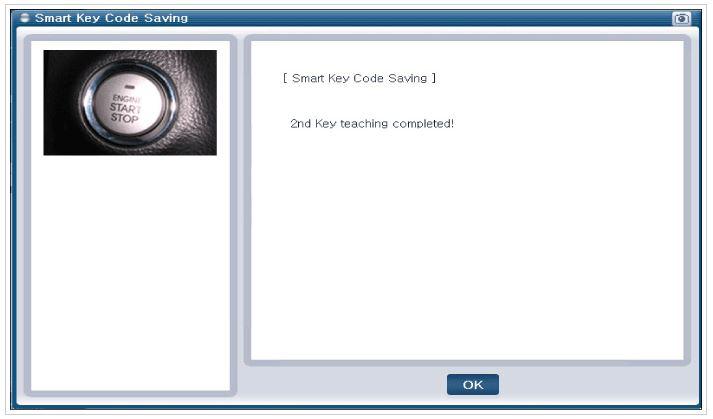

Confirm the message "Second Key Teaching Completed".

Fig 9: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be diplayed as below when key teaching process is completed.

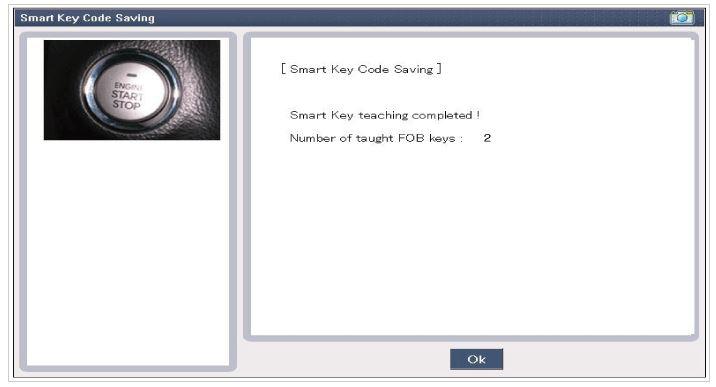

Fig 10: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be displayed as below when key teaching process is completed.

Fig 11: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
