Teaching MODE Procedure Description (Step By Step)

Objective: Key teaching procedure at service station.

Initial state:

• SMK replacement: SMK is not learnt, PDM and SMART FOB are already learnt with same PIN code.
• PDM replacement: PDM is not learnt, SMK and SMART FOB are already learnt with same PIN code.
• Additional or new keys teaching: SMK and PDM are already learnt with same PIN code.

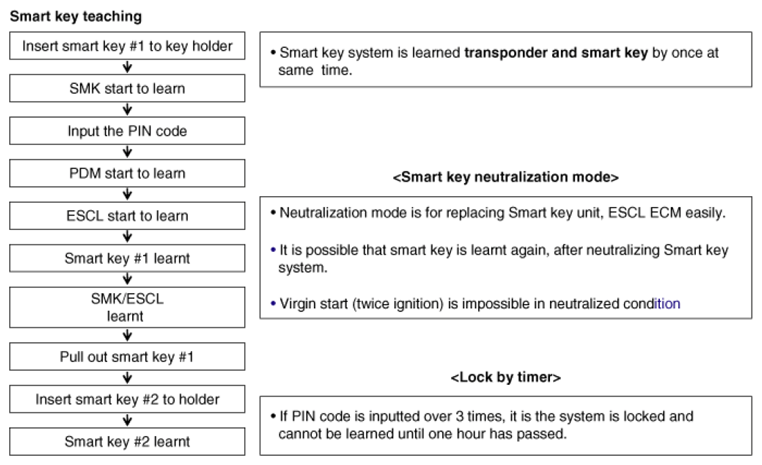

Fig 1: Smart Key Teaching Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
