Signal Waveform & Data

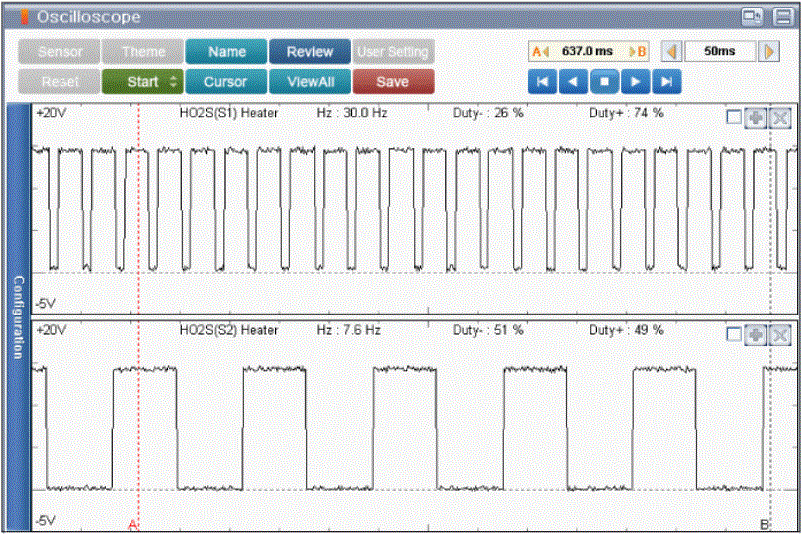

Fig 1: Normal Waveforms Of HO2S (S1, S2) Heater
G00550866Courtesy of KIA MOTORS AMERICA, INC.

HO2S (S1) : (-) Duty 26%, (+) Duty 51%

HO2S (S2) : (-) Duty 51%, (+) Duty 49%
