NVLD (Natural Vacuum Leakage Detection): Troubleshooting: Waveform

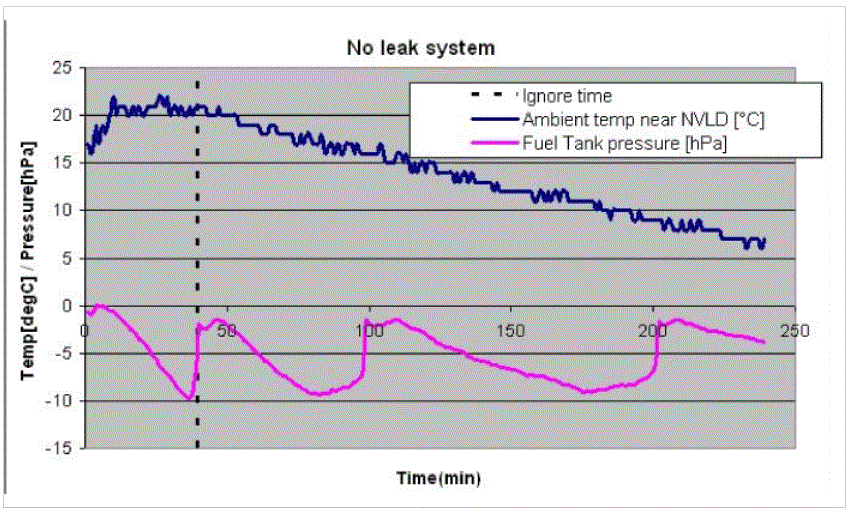

Fig 1: NVDL Signal Waveform - No Leak
G00548141Courtesy of KIA MOTORS AMERICA, INC.

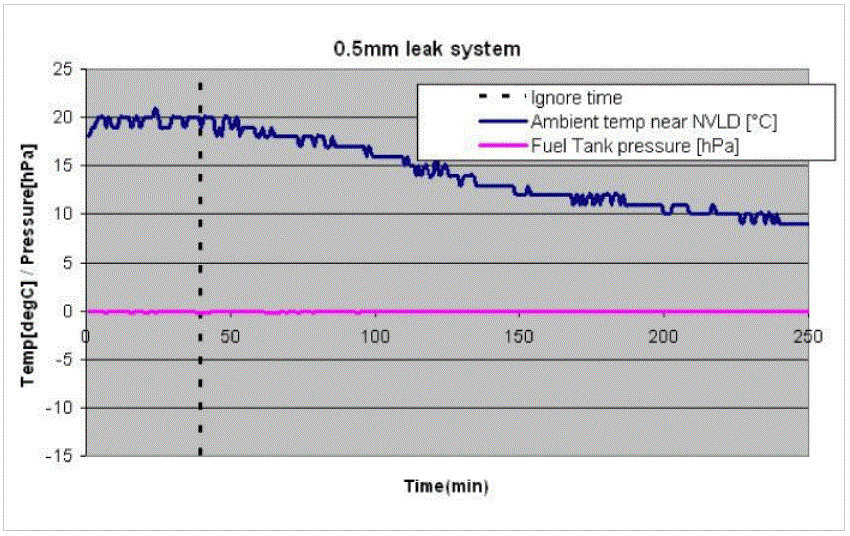

Fig 2: NVDL Signal Waveform - With 0.5 mm Leak
G00548142Courtesy of KIA MOTORS AMERICA, INC.
