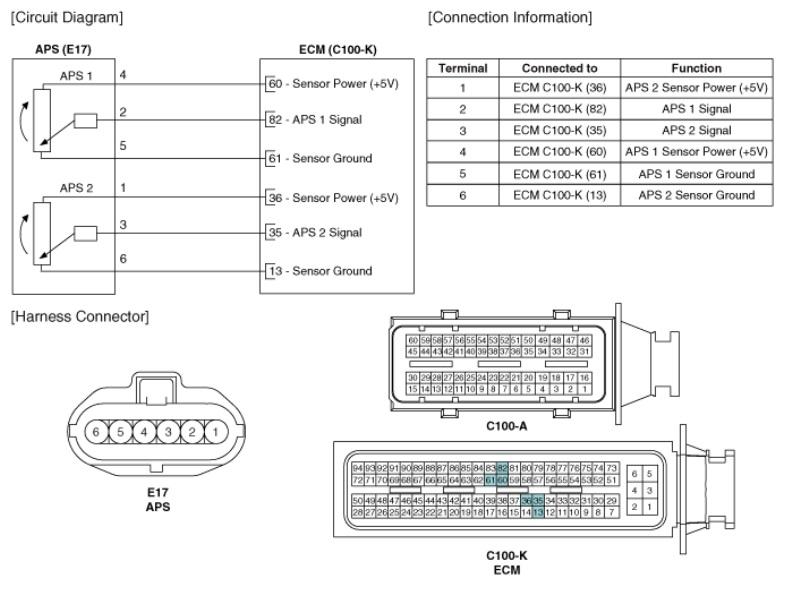

Home >> Kia >> 2015 >> Optima Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Optima HEV >> Accelerator Position Sensor (APS) >> Schematic Diagrams >> Circuit Diagram
