Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

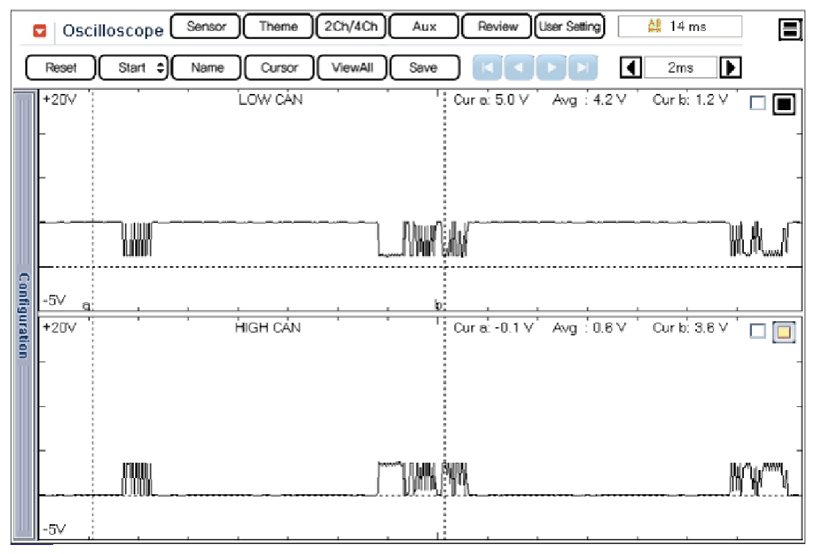

Fig 1: Display - CAN Low/High Signal Waveform
G08314445Courtesy of KIA MOTORS AMERICA, INC.

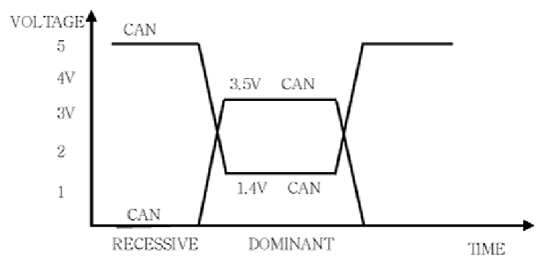

Fig 2: CAN Bus Voltage Level Graph (Low Speed CAN)
G08314446Courtesy of KIA MOTORS AMERICA, INC.
