Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the rear seat.
(Refer to the "REAR SEAT ")
Remove the package tray trim (A).
(Refer to the "INTERIOR TRIM ")

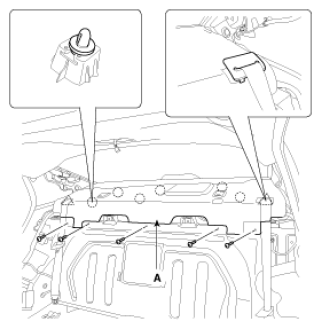

Fig 1: Identifying Package Tray Trim
Courtesy of KIA MOTORS AMERICA, INC.
Remove the soundproofing felt (A) to remove the wiring.

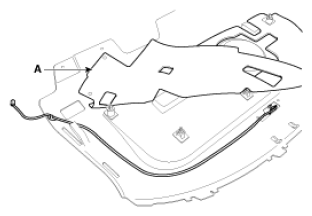

Fig 2: Identifying Soundproofing Felt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the high mounted stop lamp after removing screws and hook (A) carefully.

Fig 3: Identifying High Mounted Stop Lamp Hooks
Courtesy of KIA MOTORS AMERICA, INC.
