Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.

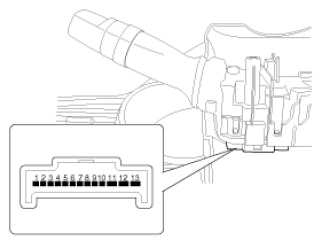

- Remove the lighting switch of the multi-function switch. (Refer to BODY ELECTRICAL SYSTEM - GENERAL INFORMATION - HEV )
- With the front fog lamp switch, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch.
