Transaxle Oil Temperature Sensor: Specifications
WARNING: This page is about a different variant/trim than selected.

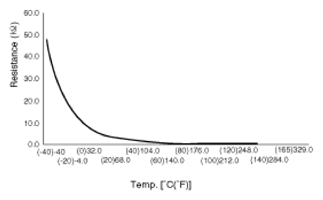

Type: Negative Thermal Coefficient Type
| Temp.(°C)°F |
Resistance (kΩ) |
| (-40)-40 |
46.8 |
| (-20)-4.0 |
15.6 |
| (0)32.0 |
5.88 |
| (20)68.0 |
2.51 |
| (40)104.0 |
1.17 |
| (60)140.0 |
0.59 |
| (80)176.0 |
0.32 |
| (100)212.0 |
0.18 |
| (120)248.0 |
0.11 |
| (140)284.0 |
0.07 |
| (165)329.0 |
0.04 |
Courtesy of KIA MOTORS AMERICA, INC.
