Repair procedures: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries. Refer to GENERAL SAFETY INFORMATION AND CAUTION .
Be sure to shut off the high voltage circuit according to the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system to avoid serious electrical injuries. Refer to HIGH VOLTAGE SHUT-OFF PROCEDURE .

Change the shift lever to "N" range.
Remove the valve body assembly. (Refer to VALVE BODY )
Disconnect the input & output speed sensor connector (A).
Loosen the main connector bolt (B).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

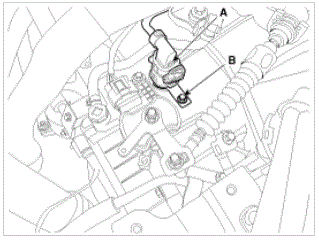

Fig 1: Input/Output Speed Sensor Connector & Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the solenoid valve connector (A).

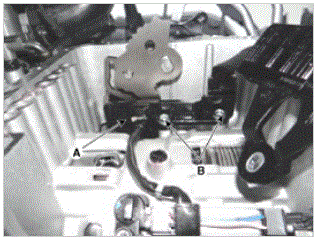

Fig 2: Disconnecting Solenoid Valve Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the solenoid valve connector clip (B) after loosening a bolt and then remove the connector (A) by pushing it down.

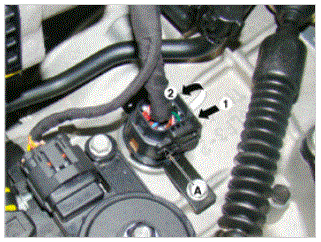

Fig 3: Solenoid Valve Connector Clip & Connector
Courtesy of KIA MOTORS AMERICA, INC.
