Repair procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is the reverse of removal.
NOTE:
- Do not reuse the drain plug gasket and the valve body cover gasket, oil cooler tube washer.
- Perform the procedures below after installing
1. Refill the automatic transaxle with fluid. (Refer to FLUID )
2. Refill the engine & transaxle cooling system with coolant. (Refer to COOLANT )
3. Refill the hybrid motor cooling system with coolant and then perform the air bleeding using the KDS/GDS. (Refer to COOLANT )
4. Perform the clutch pressure sensor calibration using the KDS/GDS. (Refer to CLUTCH PRESSURE SENSOR (CPS) )
5. Clear the diagnostic trouble codes (DTC) using the KDS/GDS. Disconnecting the battery negative terminal will not clear the DTCs. Clear DTCs using the KDS/GDS at all times.

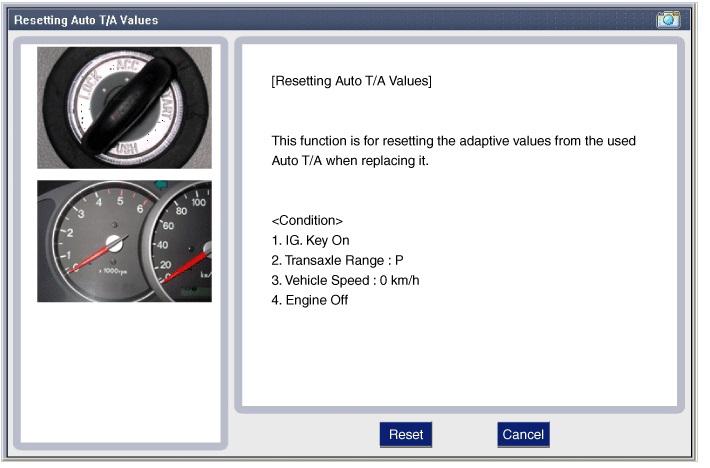

6. Reset the automatic transaxle adaptive values using the GDS.

  Fig 1: KDS/GDS
  Courtesy of KIA MOTORS AMERICA, INC.
7. Perform the TCM adaptive values learning procedure. (Refer to Automatic Transaxle Control System - Adjustment )
8. Confirm the coolant leak or fluid leak from the hose connections part in state of engine start.
