"P" position switch replace

WARNING: This page is about a different variant/trim than selected.
  1. Remove the screw and then remove the "P" position switch (A).

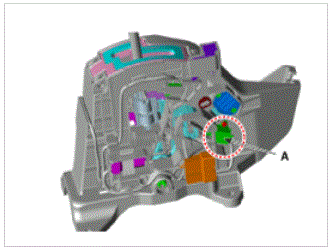

    Fig 1: "P" Position Switch
    G00548702Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the plastic bracket (A) and remove the shift lock solenoid (B).
  3. Remove the main connector (C).

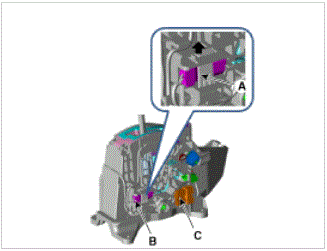

    Fig 2: Plastic Bracket, Shift Lock Solenoid & Connector
    G00548703Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the screw and remove the manual mode switch housing (A).

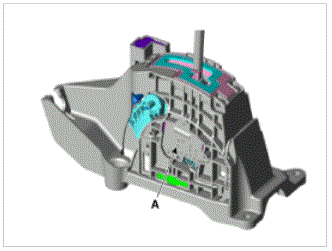

    Fig 3: Manual Mode Switch Housing
    G00548704Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the wiring fixed bracket (A) of main connector.

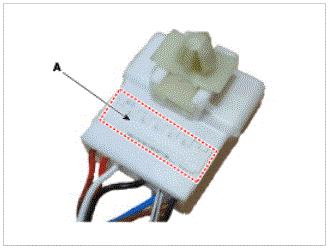

    Fig 4: Wiring Fixed Bracket
    G00548705Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the wiring of "P" position switch from the main connector.
    NOTE: Check the wiring color before disconnecting the wiring.

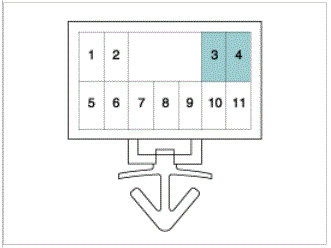

    Fig 5: Shift Lever Connector Terminal Identification
    G00548701Courtesy of KIA MOTORS AMERICA, INC.
Terminal Function
3 "P" position switch (+)
4 "P" position switch (+)
5 Manual mode down
6 Manual mode select
7 Manual mode up
9 Ground
10 Shift lock solenoid (-)
11 Shift lock solenoid (-)
