Repair procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.
NOTE:
- Make sure that shift lever and manual control lever is "N" range before you install the shift cable.
- Insert securely after check the orientation of socket (A) of cable.
- Insert the shift cable after checking the direction of projection (B) to prevent wrong assembly.

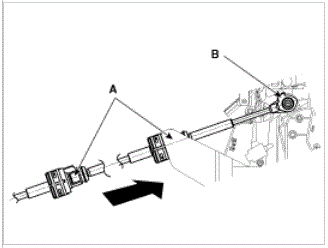

  Fig 1: Installing Shift Cable
  Courtesy of KIA MOTORS AMERICA, INC.
- Tighten the nut to specified torque after removing free play by pushing "F" direction When installing the shift cable at transaxle side.

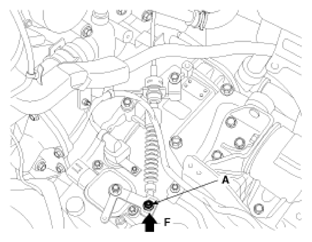

  Fig 2: Shift Cable Adjusting Nut
  Courtesy of KIA MOTORS AMERICA, INC.
- Refill the hybrid motor cooling system with coolant and then perform the air bleeding using the GDS. (Refer to COOLANT )
