Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

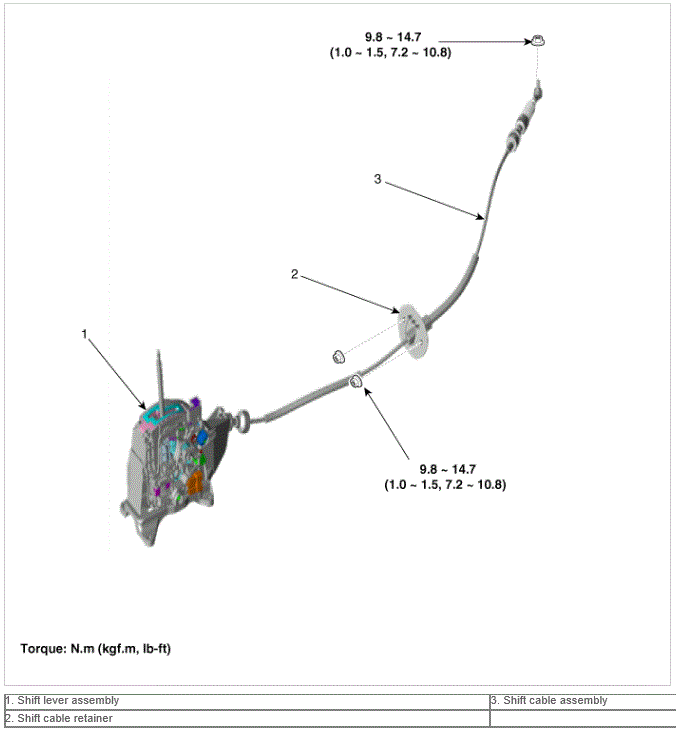

Fig 1: Shift Cable Components With Torque Specifications
G00548708Courtesy of KIA MOTORS AMERICA, INC.
