Section 17 (Automatic Transaxle Control System - Optima HEV)
>>
Input Speed Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

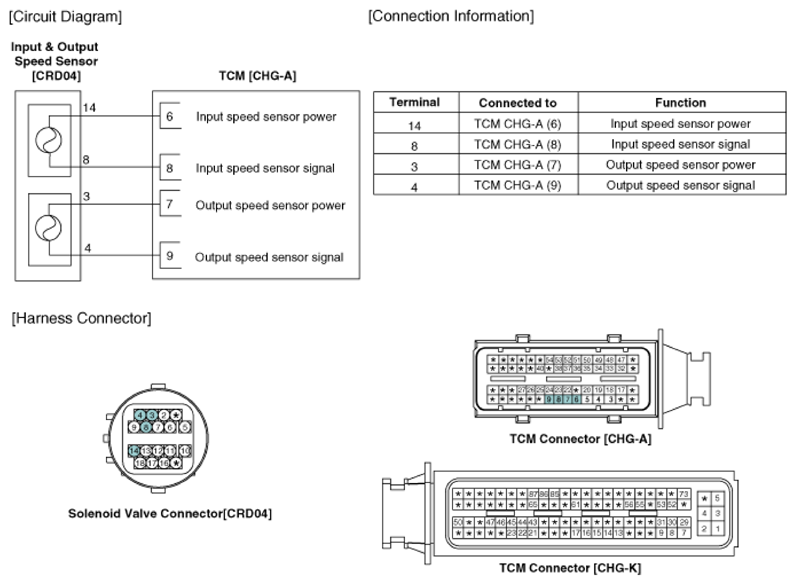

Fig 1: Input/Output Speed Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
