Smart Key Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

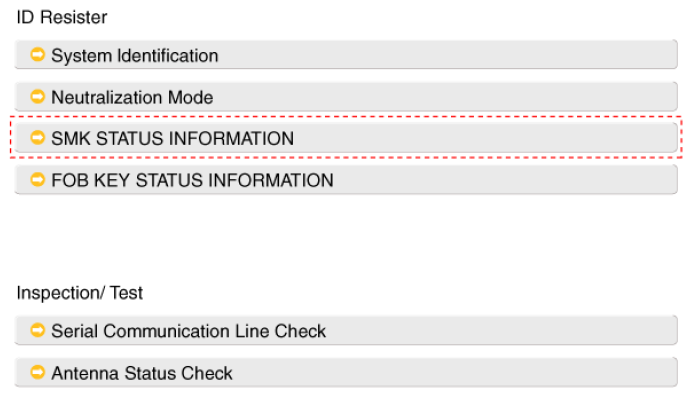

    Fig 1: Display - SMK Status Information
    G08309067Courtesy of KIA MOTORS AMERICA, INC.

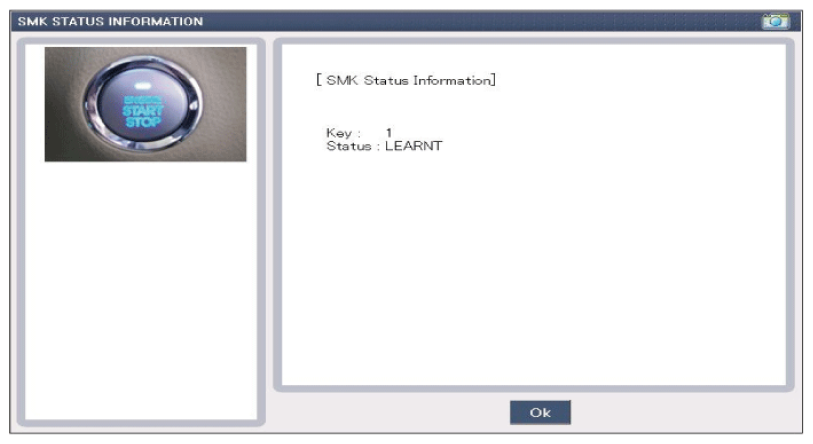

    Fig 2: Display - SMK Status Information Screen
    G08309068Courtesy of KIA MOTORS AMERICA, INC.
