Neutralization Status Check

WARNING: This page is about a different variant/trim than selected.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

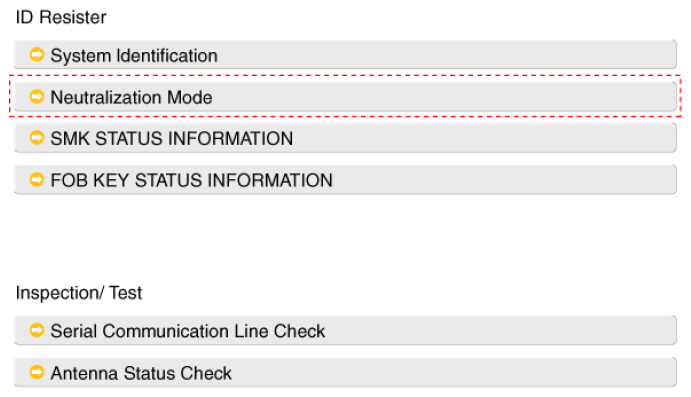

After IG ON, select the "Neutralization mode".

Fig 1: Display - Neutralization Mode

Courtesy of KIA MOTORS AMERICA, INC.

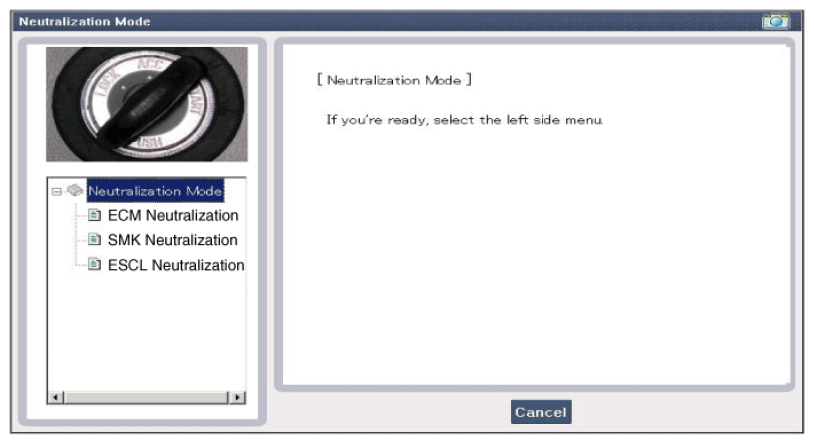

Fig 2: Display - Neutralization Mode Screen

Courtesy of KIA MOTORS AMERICA, INC.

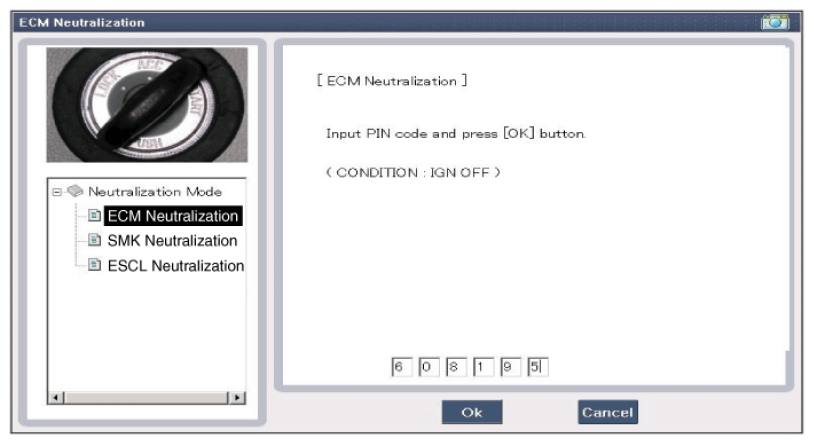

Fig 3: Display - ECM Neutralization (With Input Code)

Courtesy of KIA MOTORS AMERICA, INC.

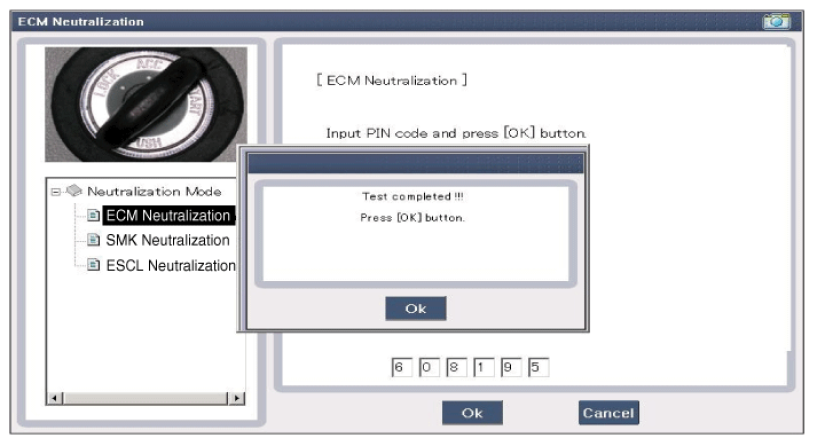

Fig 4: Display - ECM Neutralization Test Completed Message

Courtesy of KIA MOTORS AMERICA, INC.

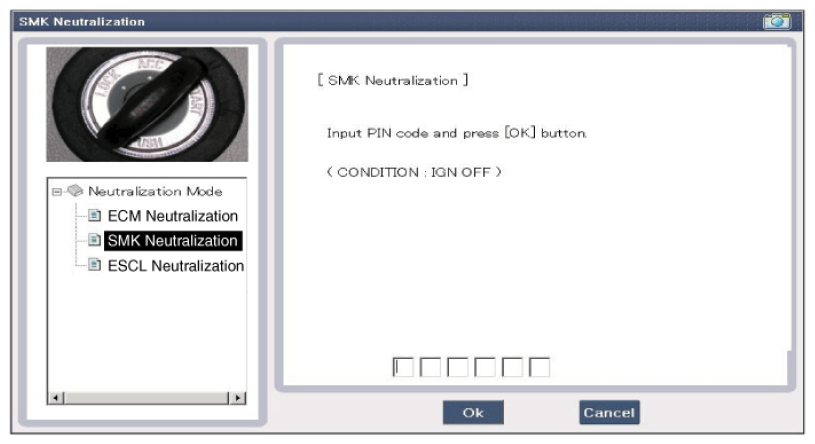

Fig 5: Display - SMK Neutralization Screen (Without Input Code)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Display - SMK Neutralization Screen (With Input Code)

Courtesy of KIA MOTORS AMERICA, INC.

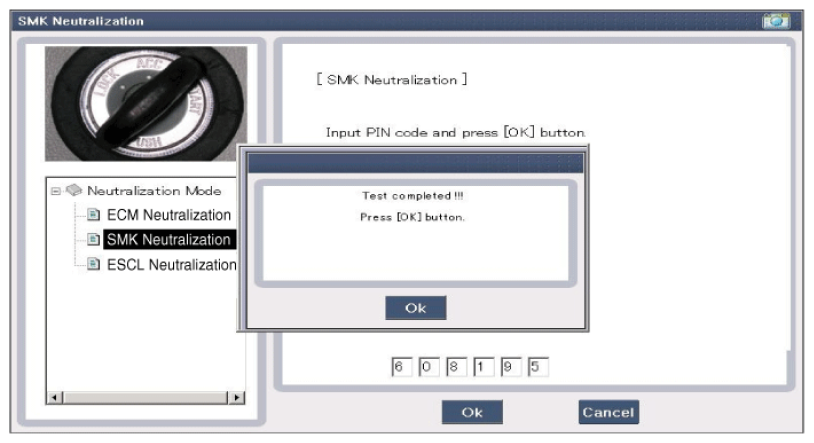

Fig 7: Display - SMK Neutralization Test Completed Message

Courtesy of KIA MOTORS AMERICA, INC.

INPUT SWITCH LIST

No	Item name	Unit
1	SSB SW1	-
2	SSB SW2	-
3	ACC	-
4	IGN1	-
5	IGN2	-
6	ACC/IGN1/IGN2 Relay	-
7	Gear 'P' Position (A/T) Clutch SW (M/T)	-
8	Brake SW	-
9	FL Door Lock Button	-
10	FR Door Lock Button	-
11	Trunk Release Button	-
12	Battery Voltage	-
13	Wheel Speed	-

ACTUATOR LIST

No.	Item name	Condition
1	External Buzzer	Ignition switch ON Engine off
2	Interior Antenna 1 Active	Ignition switch ON Engine off
3	Interior Antenna 2 Active	Ignition switch ON Engine off
4	Trunk Antenna Active	Ignition switch ON Engine off
5	Bumper Antenna Active	Ignition switch ON Engine off
6	DRV_DR Antenna Active	Ignition switch ON Engine off
7	AST_DR Antenna Active	Ignition switch ON Engine off
8	BBS Illumination (OFF/ACC/ON)	Ignition switch ON Engine off
9	ACC/IGN1/IGN2 Relay	Ignition switch ON Engine off
