A/C Control Module (Manual) Connector End View (M22-B)

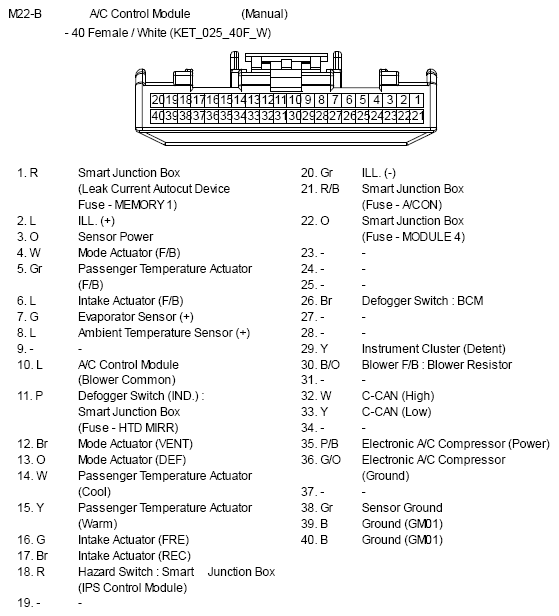

Fig 1: A/C Control Module (Manual) Connector End View (M22-B)

G10809952

Courtesy of KIA MOTORS AMERICA, INC.
