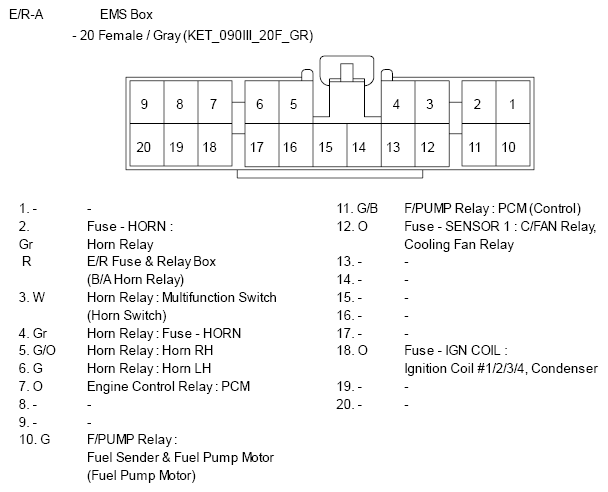

Home >> Kia >> 2015 >> Optima EX >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views (Engine Management System Box) -- Optima 2.4L TF (KOREA) >> Connector End Views >> EMS Box Connector End View (E/R-A)
