Signal Waveform & Data

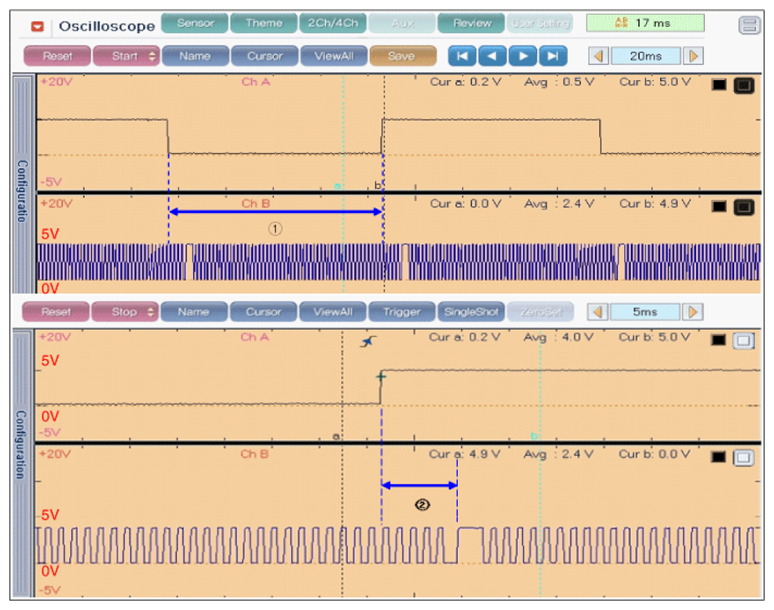

Fig 1: Signal Waveform Of CKPS & CMPS
G07386530Courtesy of KIA MOTORS AMERICA, INC.
  1. There are 60 signals of CKPS (Including missing tooth) during the semi-cycle of CMPS #1.
  2. There are 3 ~ 5 signals of CKPS between the switching point of CMPS #1 and the missing tooth of CKPS.
