Repair Procedures: Disassembly

  1. Remove the screw (A-3ea).
    Fig 1: Identifying Steering Wheel Screw (1 Of 2)
    G10714469Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Identifying Steering Wheel Screw (2 Of 2)
    G10714470Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the remote control connector (A) and remove the wiring and lower cover together.
    Fig 3: Identifying Remote Control Connector
    G10714471Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the wiring (A) from the lower cover (A).

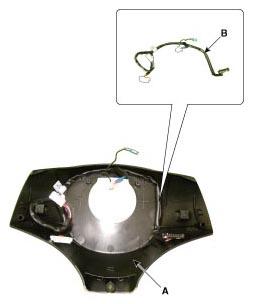

    Fig 4: Identifying Wiring And Lower Cover
    G10714472Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of the removal.
