Components And Components Location: Component

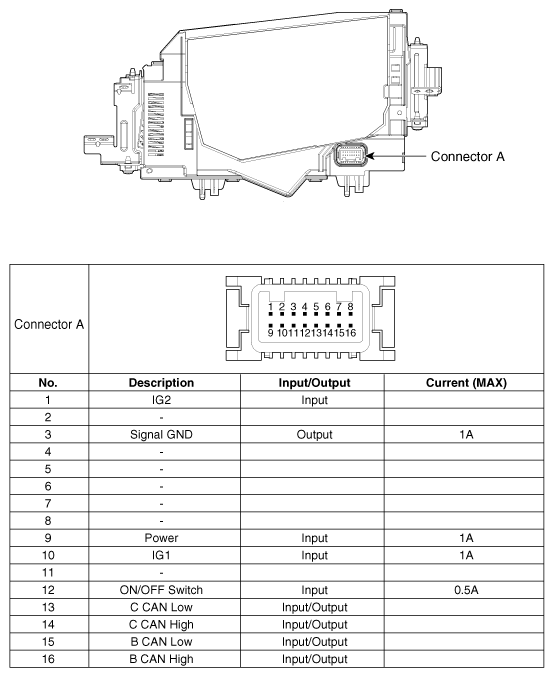

Fig 1: Identifying Head Up Display Unit Connector

G10715455

Courtesy of KIA MOTORS AMERICA, INC.
