Repair Procedures: Removal

CAUTION:

NOTE:

Remove the roof side moulding.
(Refer to Body Side Mouldings - "ROOF SIDE MOULDING ")
Remove the rear package tray trim.
(Refer to Interior Trim - "REAR PACKAGE TRAY TRIM ")
Remove the high mounted stop lamp.
(Refer to Body Electrical System - "HIGH MOUNTED STOP LAMP ")
After loosening the mounting clip, then remove the rear window glass side cover (A).

Fig 1: Identifying Rear Window Glass Side Cover
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or ornament remover, remove the rear window glass lower cover (A).

Fig 2: Identifying Rear Window Glass Lower Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the rear window glass defogger connector.
Spread the WD-40 on the side of rear window glass.

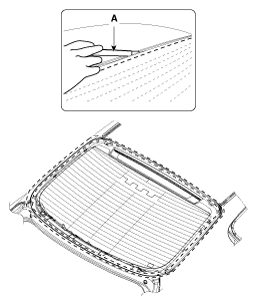

Cut out the adhesive using the cutter (A).
Information
- Please use the cutter with a blade length between 8-12 inches.
Fig 3: Cutting Adhesive Using Cutter
Courtesy of KIA MOTORS AMERICA, INC.
Enough on the upper (A) and lower (B) side (C) of rear window glass. and then cut out the adhesive using the cutter tool (09861-31100).

Fig 4: Identifying Upper/Lower Rear Window Glass Side And Cutter Tool (09861-31100)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear window glass (A).
NOTE:
- When removing and installing the rear window glass, an assistant is necessary.
Fig 5: Identifying Rear Window Glass
Courtesy of KIA MOTORS AMERICA, INC.
