Arbitration control

If the system receives multiple requests for seat operations at the same time, then the power seat functions according to the priority specified in the following table.

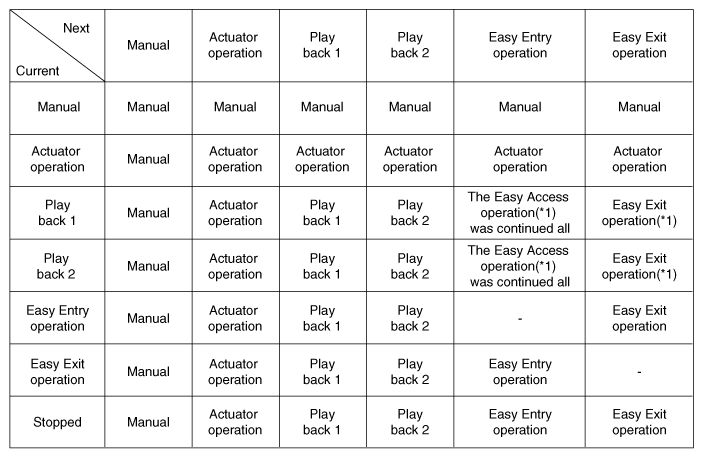

Fig 1: Arbitration Control Chart
G10715472Courtesy of KIA MOTORS AMERICA, INC.

* 1: Slide motor

* "-": Impossible condition
