Signal Waveform & Data

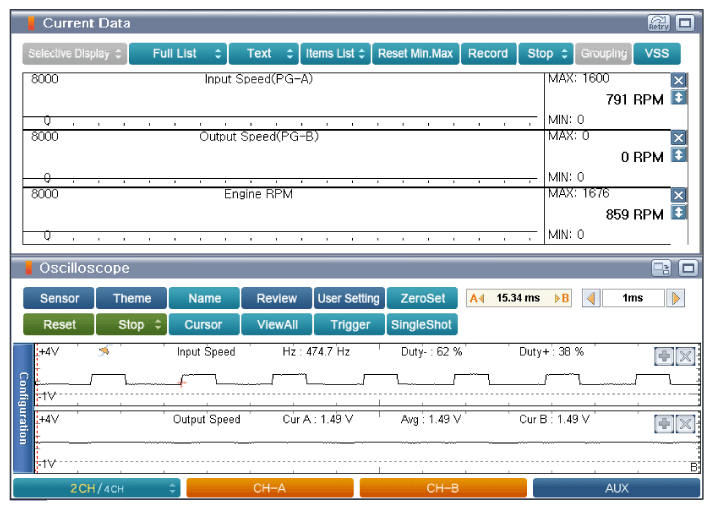

Fig 1: Screen Display - N Range

Courtesy of KIA MOTORS AMERICA, INC.

Input speed sensor - duty(-) 62%

Output speed sensor - duty(-) 50%

Fig 2: Screen Display - D Range

Courtesy of KIA MOTORS AMERICA, INC.

Input speed sensor - duty(-) 62%

Output speed sensor - duty(-) 50%
