Monitor GDS Data

  1. Connect Data Link Connector (DLC) to GDS.
  2. Check the "Current Data" about related DTC with GDS.

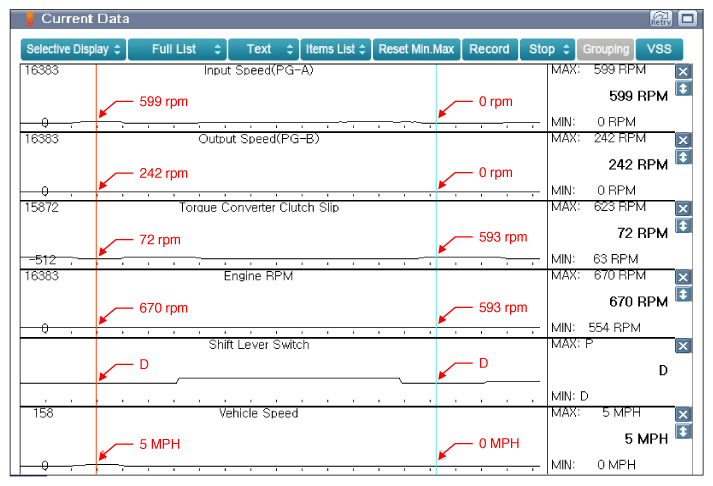

    Fig 1: Screen Display - D Range
    G10724517Courtesy of KIA MOTORS AMERICA, INC.

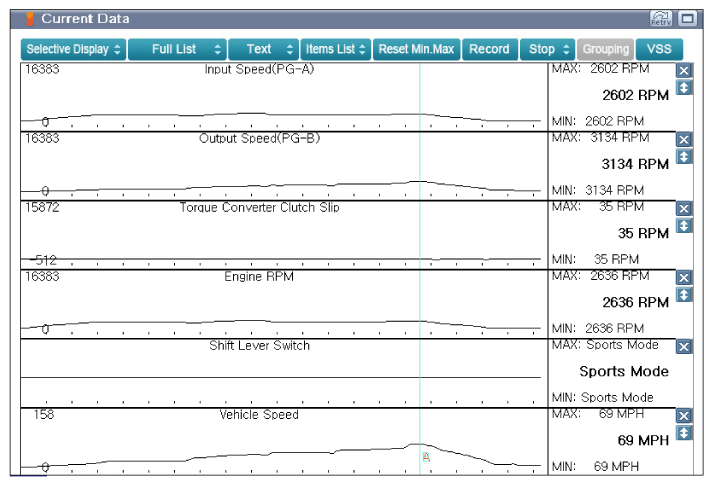

    Fig 2: Screen Display - At Acceleration
    G10724518Courtesy of KIA MOTORS AMERICA, INC.

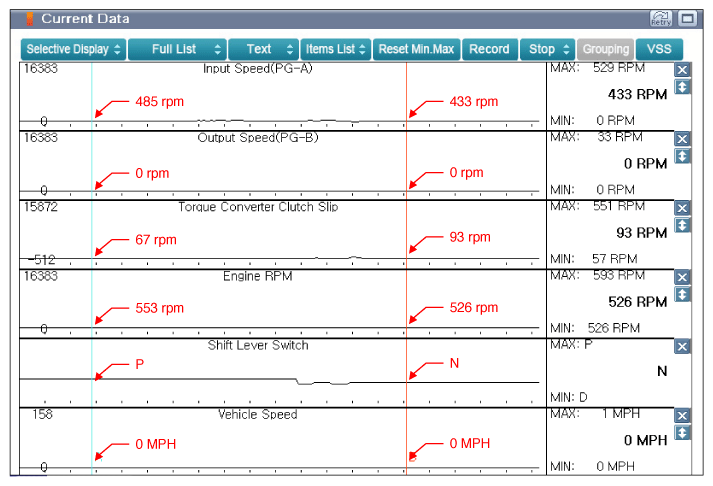

    Fig 3: Screen Display - P Range And N Range
    G10724519Courtesy of KIA MOTORS AMERICA, INC.
  3. Are the parameters displayed correctly?

    YES

    • Fault might be intermittent caused by poor contact in the sensor's and/or ECU's connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
