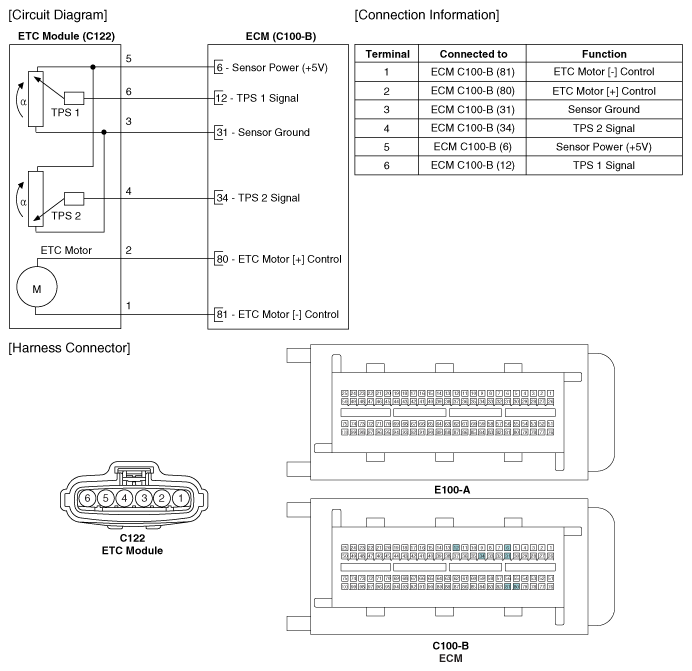

Home >> Kia >> 2015 >> K900 V6 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> ETC (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram
