Front Radar Sensor Mounting Inspection (PS704) (PS704)

Publication date: 2021-08-10
Reference number: PS704

FRONT RADAR SENSOR MOUNTING INSPECTION (PS704)

TECHNICAL SERVICE BULLETIN

Reference Number(s): PS704, Date of Issue: August 10, 2021

KIA:	2014-Current Applicable Models
GROUP:	Electrical

SERVICE INFORMATION

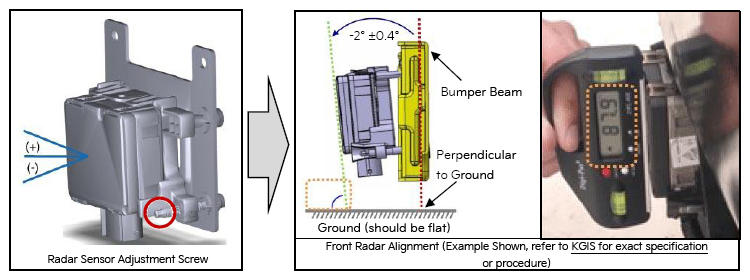

This pitstop provides information regarding front radar sensor alignment on 2014MY and later vehicles that may exhibit a warning light ON related to radar sensor alignment errors in the Forward Collision-Avoidance Assist (FCA)/Smart Cruise Control (SCC) system. These alignment errors may be due to a collision or other outside impact that may have caused the radar unit to lose its original factory setting. The underlying damage may not be readily apparent from the exterior. In these cases, replace the damaged bracket or bumper beam and perform the Front Radar Sensor Alignment by referring to the "Brake System → Forward Collision-Avoidance Assist (FCA) System → Repair procedures" in the applicable Shop Manual on KGIS. If radar sensor alignment is needed review the videos on KGIS under "Publication → Tech Videos → Brake System"

NOTE: Check for any bent mounting brackets or bumper beam damage where the radar sensor is mounted that may have caused the radar sensor to go out of factory alignment.

If the Front Radar Alignment does not correct the concern, dealer should diagnose and replace the required part(s) and perform the alignment as necessary.

NOTE: All Warranty Claims require the "Before" and "After" Vertical Angle measurements documented in the claim notes.
