Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the seat side cover (A).

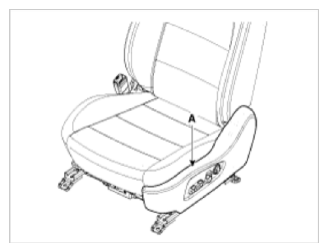

    Fig 1: Seat Side Cover
    G09750591Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the power seat control switch connector (A).

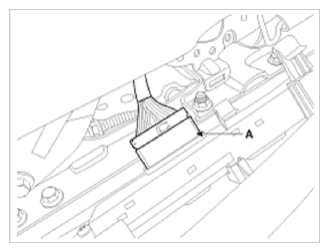

    Fig 2: Power Seat Control Switch Connector
    G09750592Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the power seat control switch (A) after loosening the mounting screw.

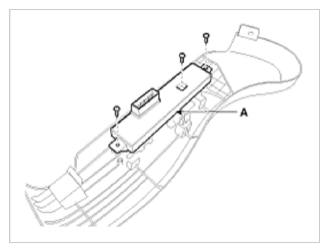

    Fig 3: Power Seat Control Switch
    G09750593Courtesy of KIA MOTORS AMERICA, INC.
