Components And Components Location: Components

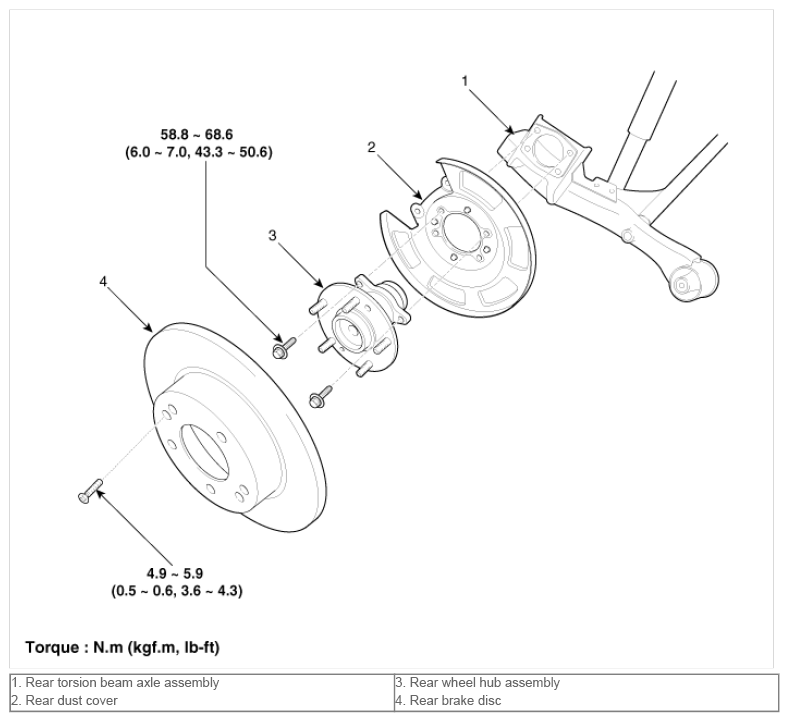

Fig 1: Rear Hub Assembly Replacement Components With Torque Specifications

G09743459

Courtesy of KIA MOTORS AMERICA, INC.
