WCS Reset

Ignition "OFF", connect GDS.
Ignition "ON" & Engine "OFF".
Perform "WCS Reset" in the "Vehicle S/W Management"
You will see comments and current weight measured.
Make sure the measure weight is caused by occupant or tools or interference.
And then press "ENTER"

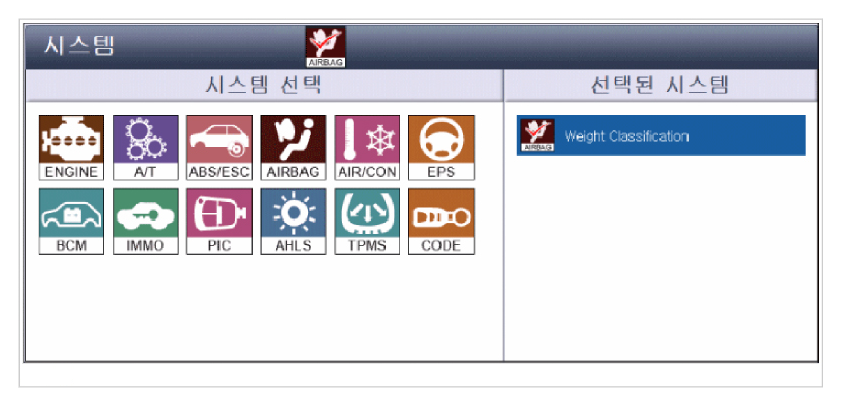

Fig 1: Weight Classification Selection Screen
Courtesy of KIA MOTORS AMERICA, INC.

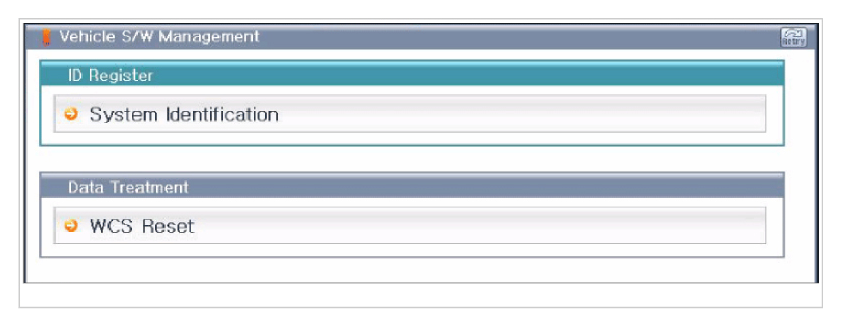

Fig 2: System Identification Screen
Courtesy of KIA MOTORS AMERICA, INC.

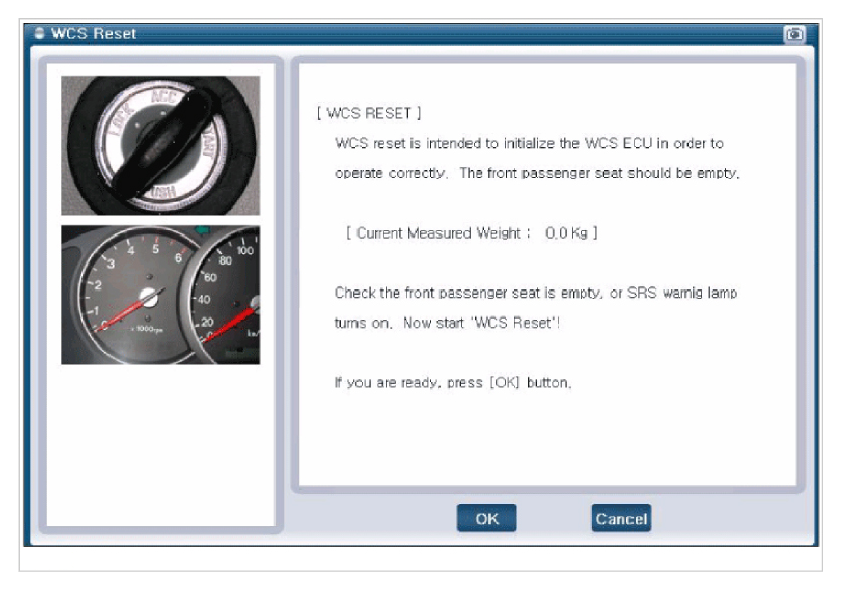

Fig 3: Weight Classification System Reset Screen
Courtesy of KIA MOTORS AMERICA, INC.
The 'WCS Reset' operation will take 3~10 second.
Make sure that there should not be vibration or weight adding to the passenger front seat.

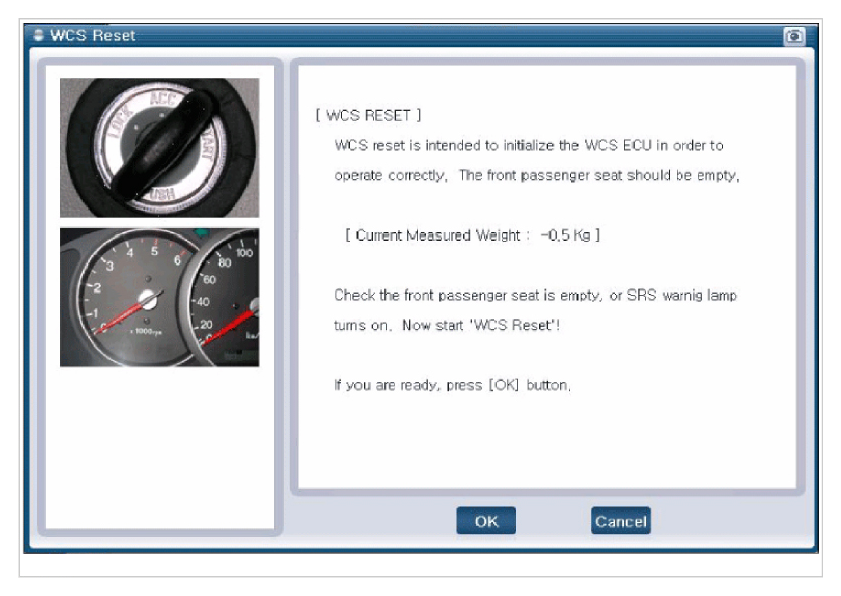

Fig 4: Weight Classification System Selection Screen
Courtesy of KIA MOTORS AMERICA, INC.

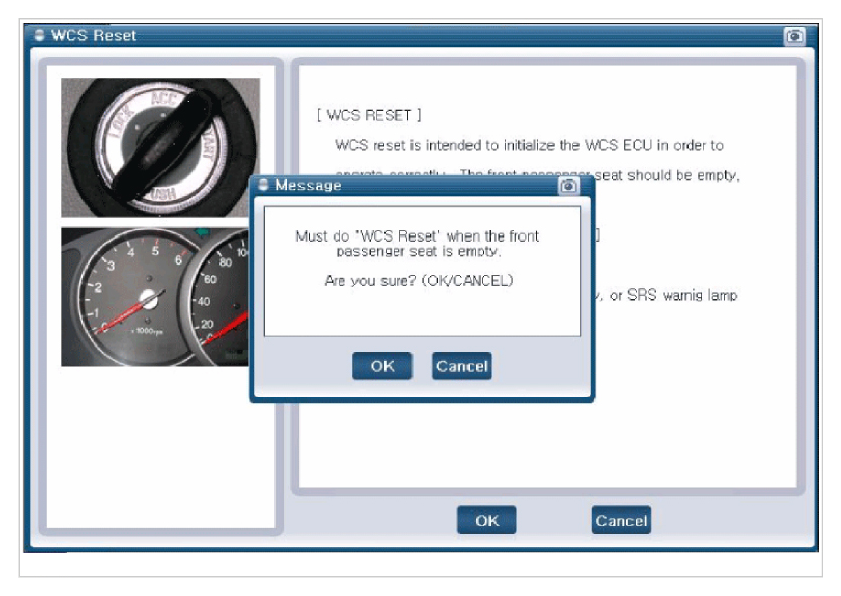

Fig 5: Weight Classification System Confirmation Screen
Courtesy of KIA MOTORS AMERICA, INC.

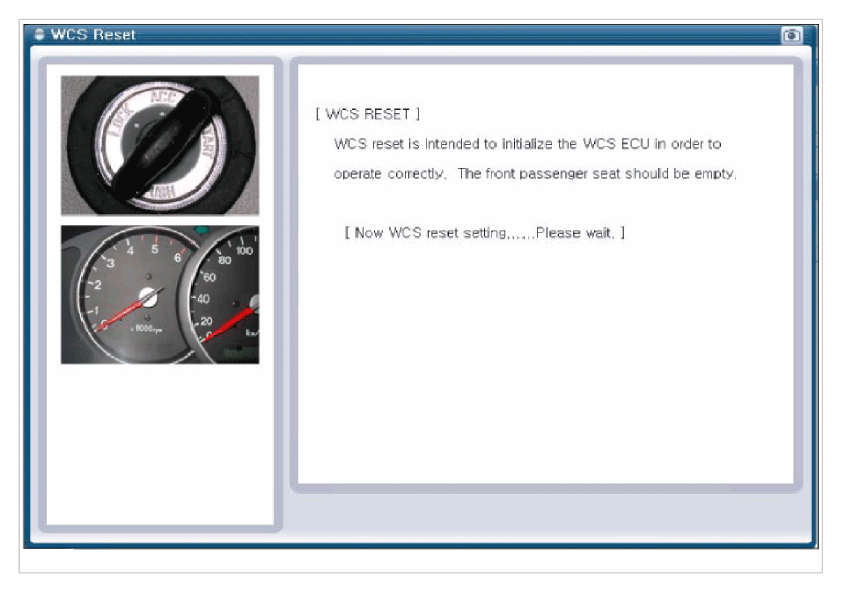

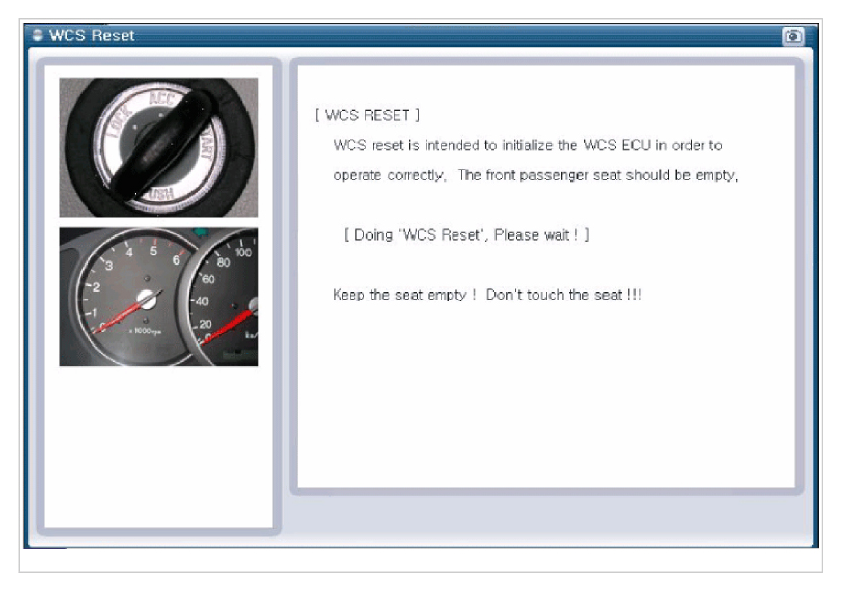

Fig 6: Weight Classification System Reset Screen
Courtesy of KIA MOTORS AMERICA, INC.

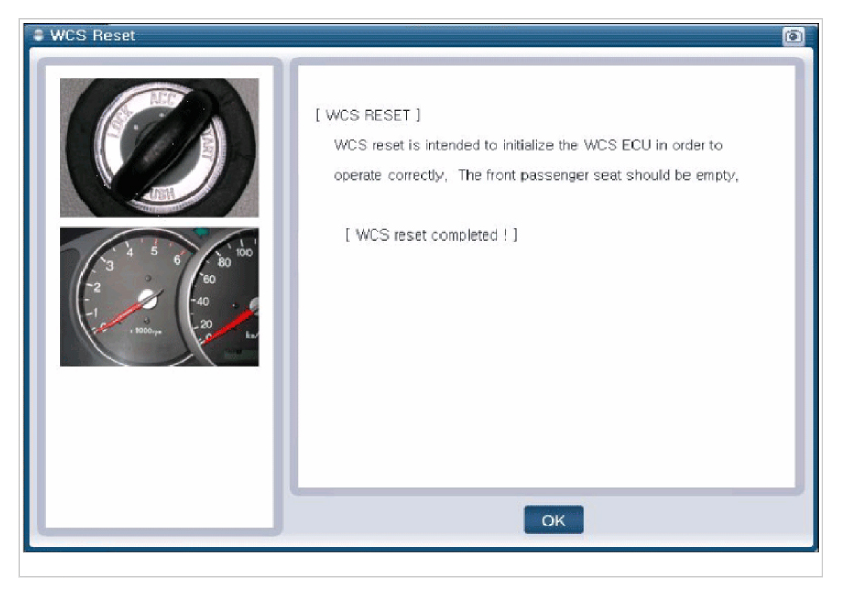

Fig 7: Weight Classification System Completion Screen
Courtesy of KIA MOTORS AMERICA, INC.
If the 'WCS Reset' operation is finished successfully, you will see the following screen.
Specification: Approx. - 4.0 kg ~ + 4.0 kg

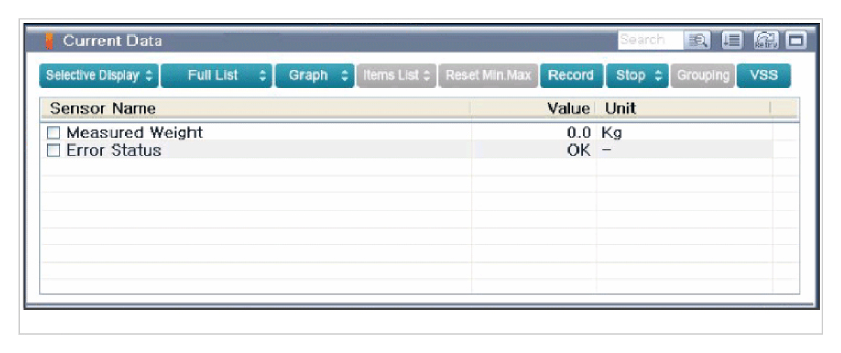

Fig 8: Normal Data Of WCS Confirmation Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Error Status Current Data Selection Screen
Courtesy of KIA MOTORS AMERICA, INC.
Is the displayed parameter the same as the above Fig 9?
YES
- WCS reset is performed correctly
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- WCS reset isn't performed correctly.
- Go to the applicable troubleshooting procedure.
