Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit. When installing the new oil seal, use the specialized tool (oil seal installer, 09453-2F300).

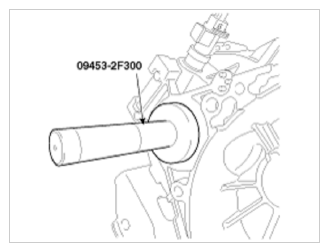

Fig 1: Specialized Tool (Oil Seal Installer, 09453-2F300)

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.
Adding manual transaxle fluid after Installing the manual transaxle.
(Refer to "MANUAL TRANSAXLE FLUID ")
Perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid.
(Refer to "ADJUSTMENT ")
