Section 12 (Manual Transaxle System - 1.6L)
>>
Manual Transaxle Oil
>>
Components And Components Location
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

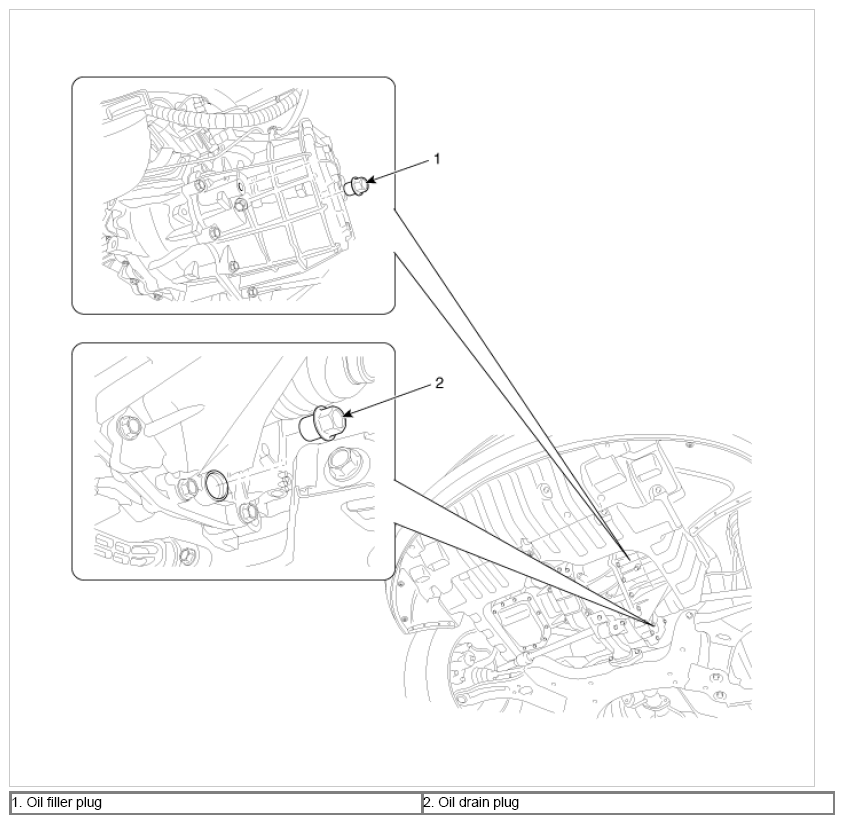

Fig 1: Manual Transaxle System Components Location
Courtesy of KIA MOTORS AMERICA, INC.
