Circuit Diagram: (A/T)

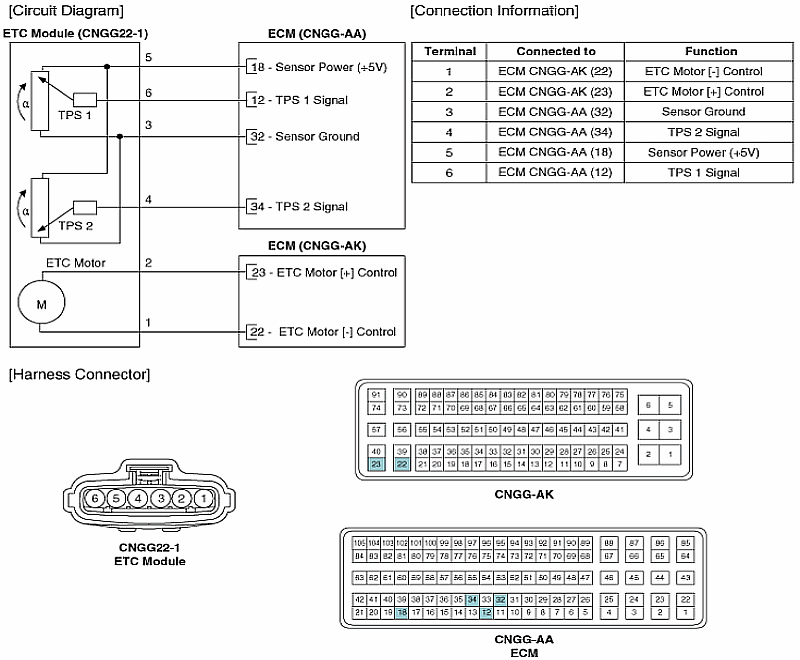

Fig 1: Electronic Throttle Control Module - Circuit Diagram (A/T)
G09742956Courtesy of KIA MOTORS AMERICA, INC.
