SRS Control Module Connector End View (M51)

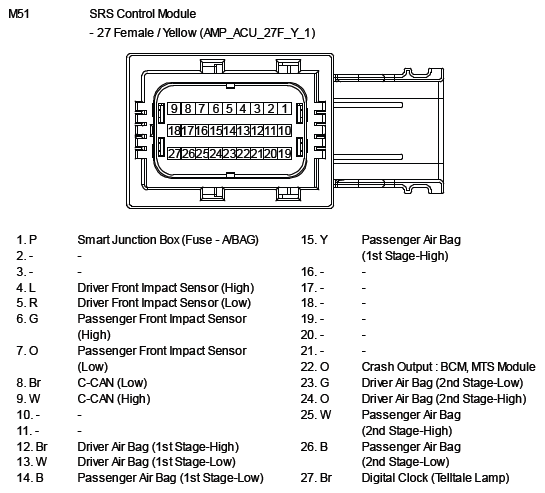

Fig 1: SRS Control Module Connector End View (M51)

G10783604
