Repair Procedures: Removal

Remove the floor Interior console assembly.
(Refer to "FLOOR CONSOLE ")

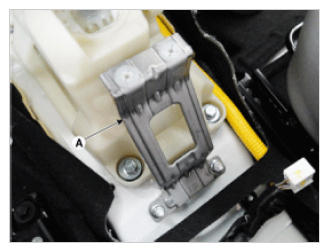

Remove the cover (A).

Fig 1: Floor Interior Console Cover
Courtesy of KIA MOTORS AMERICA, INC.

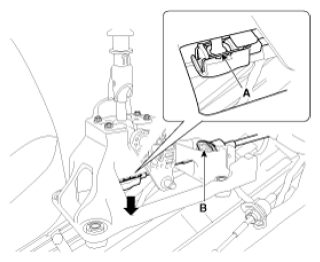

Remove the select cable (B) by removing the snap pin (A).

Fig 2: Select Cable And Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.

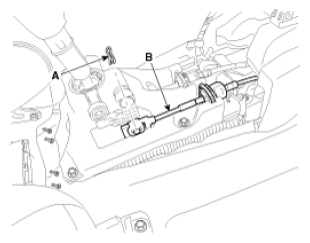

Remove the shift cable (B) after removing the clip (A).

Fig 3: Removing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

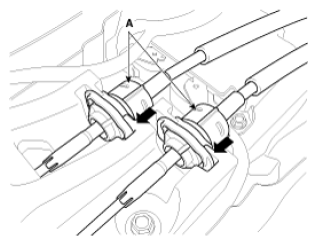

Remove the cable socket (A) from lever assembly after pulling the cable socket clip in the direction of the arrow.

Fig 4: Removing Cable Socket From Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.

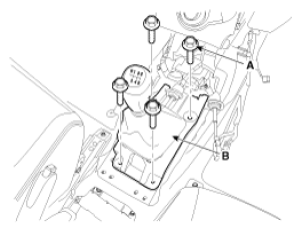

Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening Torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 5: Shift Lever Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the boots (A) and knob (B) from the lever assembly.
Information

Rotating counter-clockwise shift lever knob (B).

Fig 6: Removing Shift Lever Knob
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Shift Lever Knob Components
Courtesy of KIA MOTORS AMERICA, INC.
