Home >> Kia >> 2015 >> Forte LX, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 1.8L & 2.0L >> Control Cable >> Components And Components Location >> Components

Components And Components Location: Components

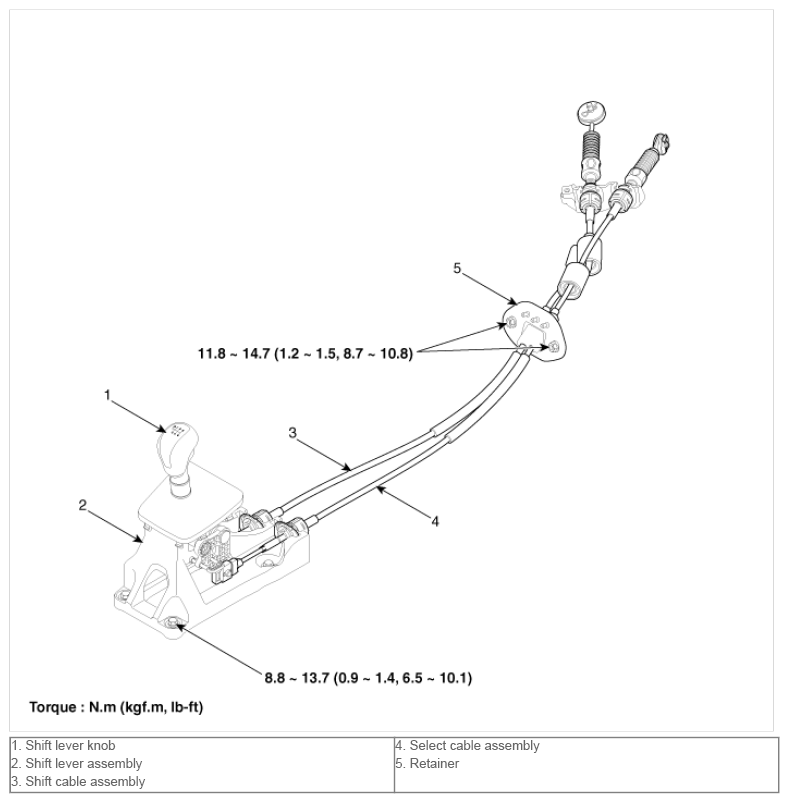

Fig 1: Control Cable Replacement Components With Torque Specifications

G09743221

Courtesy of KIA MOTORS AMERICA, INC.
