Circuit Diagram: (A/T)

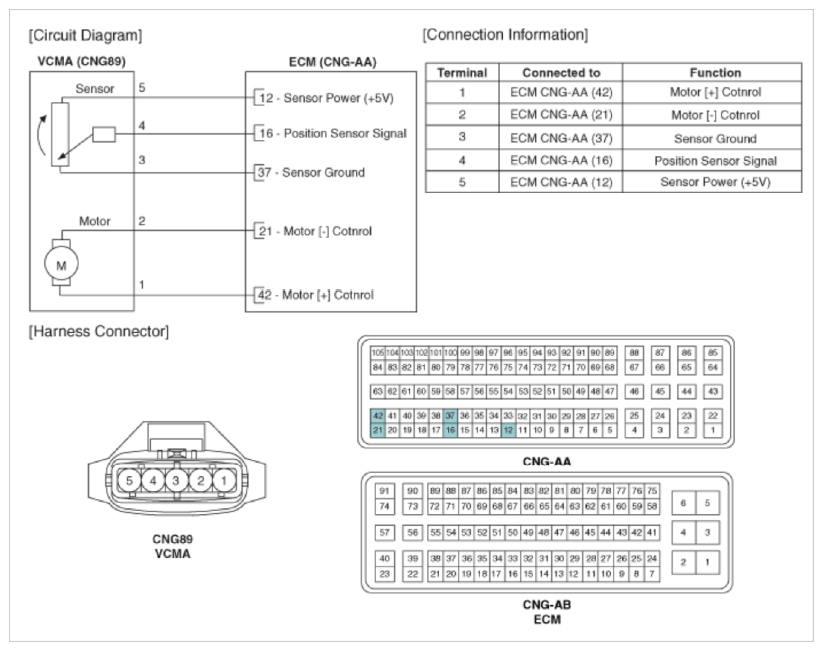

Fig 1: Variable Charge Motion Actuator (VCMA) - Circuit Diagram (A/T)

G09748814

Courtesy of KIA MOTORS AMERICA, INC.
