Automatic Transaxle Control System - 1.8L
>>
Transaxle Control Module (TCM)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

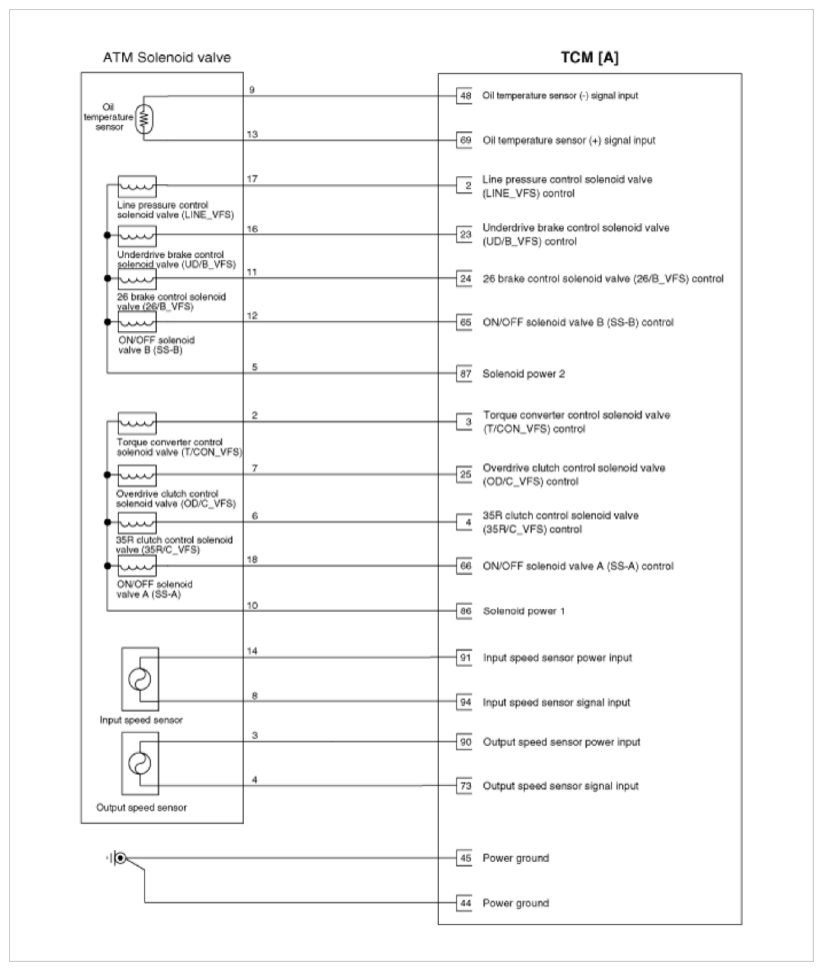

Fig 1: TCM Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

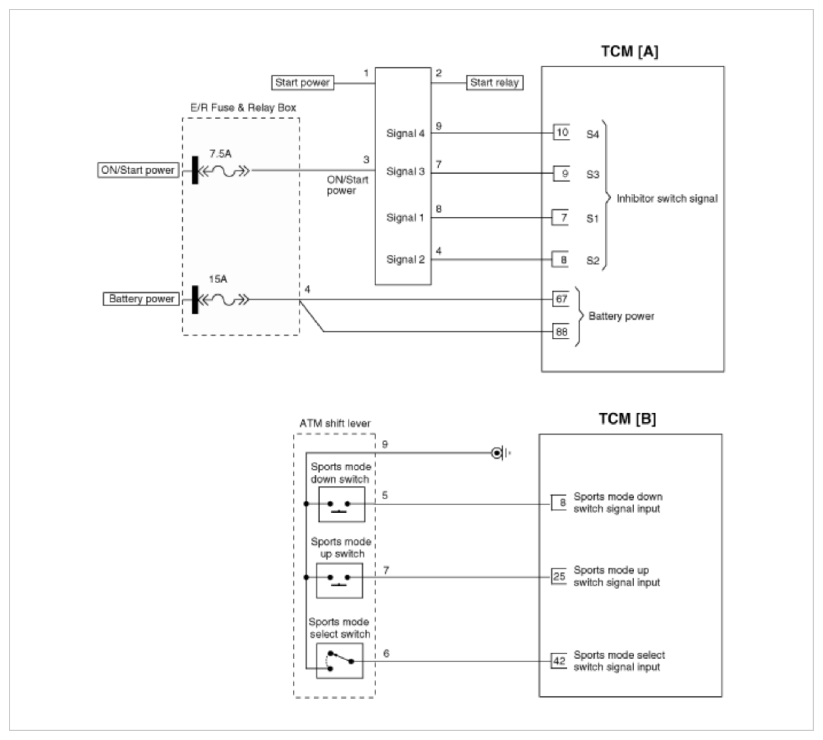

Fig 2: TCM Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
