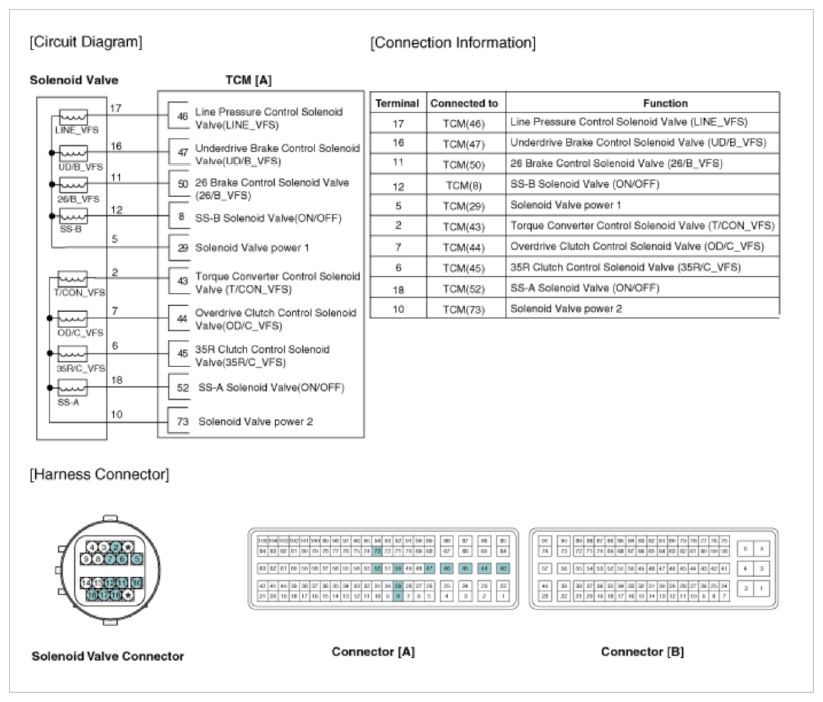

Home >> Kia >> 2015 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 1.8L >> Torque Converter Control Solenoid Valve (T/CON_VFS) >> Schematic Diagrams >> Circuit Diagram
