Circuit Diagram: (A/T)

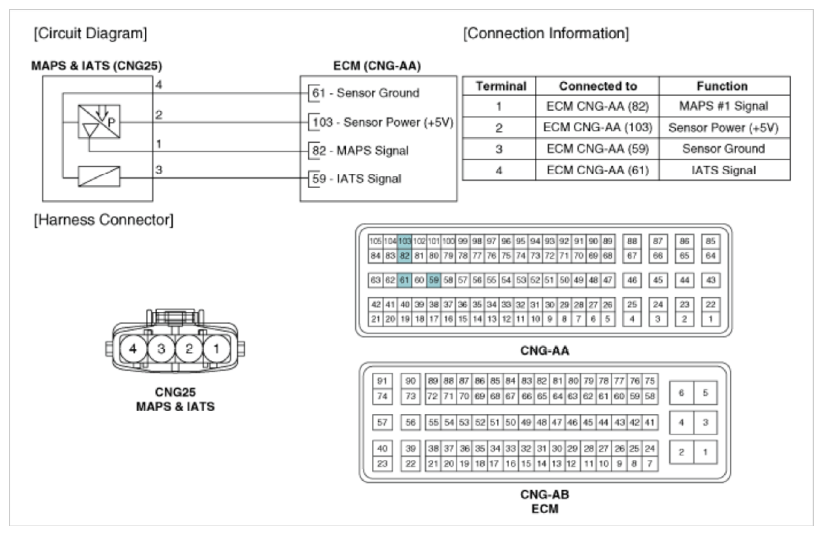

Fig 1: Manifold Absolute Pressure Sensor (MAPS) - Circuit Diagram (A/T)

G09748735

Courtesy of KIA MOTORS AMERICA, INC.
