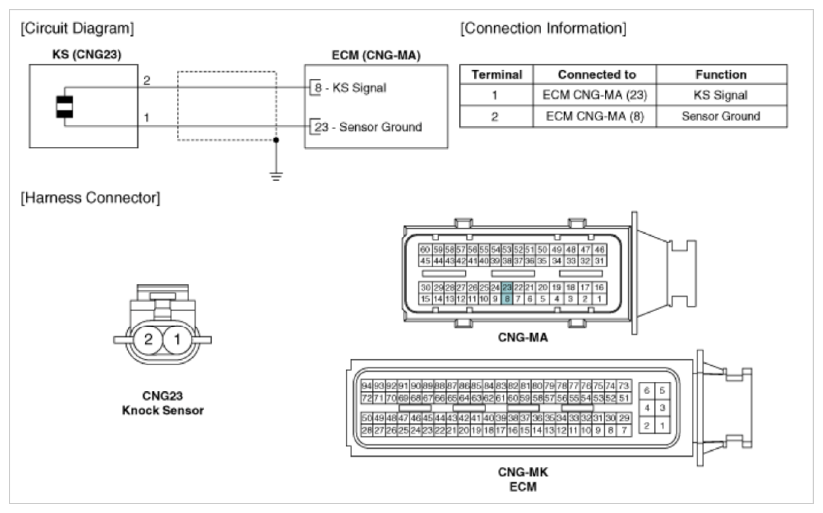

Home >> Kia >> 2015 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.8L >> Knock Sensor (KS) >> Schematic Diagrams >> Circuit Diagram >> (M/T)
